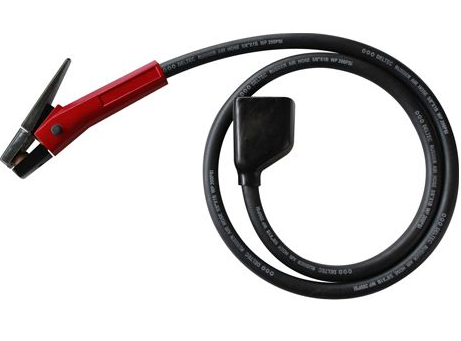

A gouging torch, also known as an air carbon-arc gouging torch, is a specialized tool used in various industries, particularly in metal fabrication and welding. It is designed for the process of air carbon-arc gouging, which involves removing metal by melting it with an electric arc and then blowing away the molten metal with a stream of compressed air. This process is commonly used for tasks such as preparing joints for welding, removing defective welds, cutting through metal, and cleaning surfaces.
Electrode Holder: The electrode holder holds the carbon electrode, which is consumed during the gouging process as the electric arc melts the metal.
Air Nozzle: The air nozzle is responsible for directing a stream of compressed air onto the molten metal, effectively blowing it away from the workpiece.
Cable and Connector: The torch is connected to a power source and an air compressor through cables and connectors. The power source provides the electrical current for the arc, while the air compressor supplies the compressed air for metal removal.
Preparation: The workpiece is cleaned and prepared to ensure proper arc ignition and consistent gouging.
Electrode Insertion: The carbon electrode is inserted into the electrode holder of the gouging torch.
Arc Ignition: The electrode is brought into contact with the workpiece and then lifted slightly. An electric arc is established between the electrode and the workpiece.
Metal Melting: The electric arc generates intense heat, melting the metal at the gouging point.
Compressed Air: Simultaneously, a stream of compressed air is directed through the air nozzle, blowing away the molten metal.
Gouging Path: By moving the torch along the desired path, operators can remove unwanted material and create grooves, cuts, or clean surfaces.
Weld Preparation: Gouging torches are often used to prepare joints for welding by removing old welds, rust, and other contaminants, ensuring proper weld penetration and quality.
Defect Removal: Defective welds or materials can be removed using gouging torches, allowing for repairs and re-welding.
Cutting: Gouging torches can also be used for cutting through metal, especially when precision cutting is not a primary concern.
Surface Cleaning: The gouging process is effective for cleaning surfaces, removing coatings, paint, and scale from metal.
Shipbuilding: Gouging torches are commonly used in shipyards for various metal preparation and repair tasks.
Structural Steel Work: Gouging torches are employed in the construction industry for tasks involving structural steel fabrication and modification.
Gouging torches are powerful tools that require proper training and safety precautions. Operators must wear appropriate protective gear, and proper ventilation is necessary to manage fumes generated during the gouging process. The versatility and efficiency of gouging torches make them valuable assets in metalworking and welding operations.
